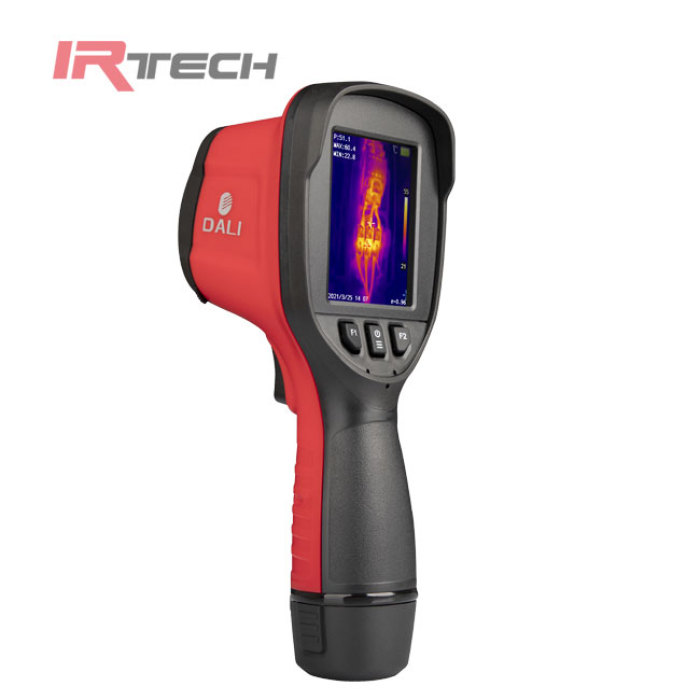

Handheld Thermal Camera | T1-M Industrial Thermal Imager

Home / all / Thermal Camera&System / Handheld Thermal Camera /

Handheld Thermal Camera | T1-M Industrial Thermal Imager

Handheld Thermal Camera | T1-M Industrial Thermal Imager

Handheld Thermal Camera | T1-M Industrial Thermal Imager
Handheld Thermal Camera | T1-M Industrial Thermal ImagerHandheld Thermal Camera | T1-M Industrial Thermal ImagerHandheld Thermal Camera | T1-M Industrial Thermal ImagerHandheld Thermal Camera | T1-M Industrial Thermal Imager
CategoriesHandheld Thermal Camera
BrandMSTAR Machine Vision System
ModelT1-M
Detector TypeUncooled FPA
Resolution120x120
Spectral Response8~14um
NETD0.06℃@30℃
Frame Rate50HZ
Angle of View Field33°x33°
Focusing Range0.5m -∞
Display3.2" TFT LCD,240x320
Protection LevelIP54
Update Time2022/8/10
Detail Information
Handheld Thermal Camera |T1-M Thermal Imager
The T1M is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 250°C
Parameters

Items

Technical parameters

T1M

Detector

Type

Uncooled FPA

Resolution

120x120

Spectral range

8-14um

Frame rate

50 Hz

NETD

0.06@30

Lens

FOV

33°x33°

Focal range

0.5m~∞

Focal method

Focus-free


Spatial resolution

5mrad

Visual camera

Yes

Display

LCD

3.2" TFT LCD240x320

Color palette

4 Color palettes for optionironrainbowblack heatwhite heat

Display mode

Thermal/visual quick switchingDual-waveband image fusion technology

Adjustment

Auto

Measurement

Range

-20~ +250

Accuracy

±2 or ±2%

Adjustment

Auto

Measure mode

Settled central spotFull screen Max./Min temp.Overheated alarm (voice, light)

Emissivity adjustment

Variable from 0.01to 1.0increment: 0.01

Settings

Data/time/format//Klanguage

Storage

Memory card

Internal memoryup to Max. 5000pcs images

Storage method

Manualsingle frame thermalfusion image

Photo format

JPEGwith original digital data

Voice annotation

60 secondssaved with image

Power supply

Battery

Special-packing rechargeable Li-on batteryreplaceable

Operation time

>3 hours continuous operation

Charging

USB port

Energy-saving mode

Auto sleepauto shut down

Interface

Power input

Mini-USB

Data transport

Mini-USB

Environment

Working temp.

-15~+50

Storage temp.

-25~+60

Humidity

≤90% Non-condensing

Protection grade

IP54

Shock resistance

25G, IEC68-2-29

Vibration resistance

2G, IEC68-2-6

Drop

1.5m

Safety

EMC

Comply with CE

Dimension & Weight

Dimension

240*88*135mm (H*W*D)

Weight

510g(w/ battery)
