Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera

Home / all / Thermal Camera&System / Handheld Thermal Camera /

Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera

Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera

Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera
Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal CameraHandheld Thermal Camera | T120 T120V Entry-level Portable Thermal CameraHandheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera
CategoriesHandheld Thermal Camera
BrandMSTAR Machine Vision System
ModelT120/T120V
IR Resolution120×90@17μm
Detector typeVOx/7.5~14μm
Frame Rate25HZ/9HZ
Focal Length2.28mm/F1.13
Display2.4 inch IPS technology TFT display
Temperature Range-20°C-150°C, 100°C-400°C
Accuracy±2℃ or ±2%
USBTYPE-C、TF Card slot
Weightabout 350g
Update Time2022/10/3
Detail Information
Handheld Thermal Camera | T120 T120V Entry-level Portable Thermal Camera
T120 Series Entry-level Thermal Imaging Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with self-developed 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately. It can also easily save images and data, and download fast via USB, removable TF card.
Features

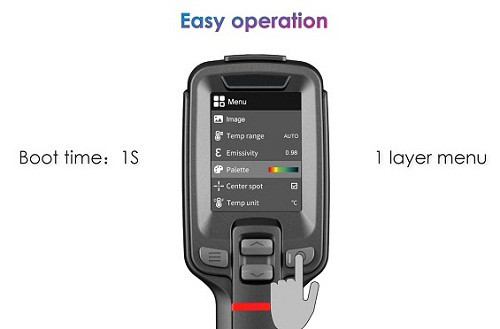

Boot up in 1 Second
Boot up and display fully radiometric image instantly

Full screen max & min temperature alarm

2.4 inch Large Display

240x320 pixel Color LCD

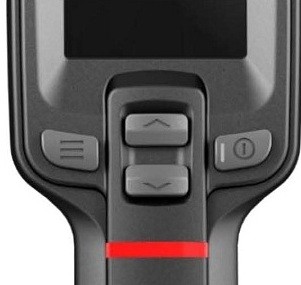

Good-handle Buttons
Ergonomic design

Easy to operate even wear the gloves



8-hour Battery Life

Low power consumption,

Large capacity battery

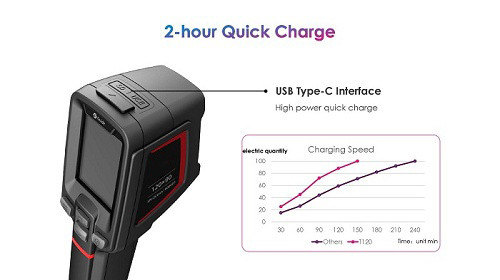

2-hour Fast Charge

USB Type-C Interface

High power quick charge

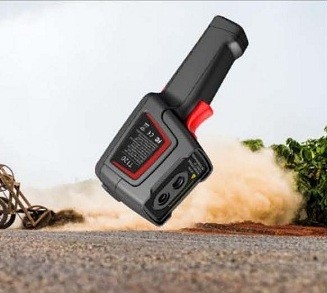

Rugged Design

2-meter Drop Test, IP54 Encapsulation

IR/Visible/Laser Indicator

Pinpoint targets precisely
Parameters

Model

T120

T120V

IR image & Optical

IR Resolution

120×90@17μm

Detector type

VOx/7.5~14μm

Frame Rate

25HZ/9HZ

Thermal   Sensitivity / NETD

60 mk

Focal Length

2.28mm/F1.13

Field of   view(FOV)

50°×38°

Spatial   Resolution(IFOV)

7.6 mrad

Focus

Focus-free

Visible Camera

Visible Camera   Resolution

N/A

320×240,   Focus-free

Flashlight

N/A

Yes

Image Display

Display

2.4 inch IPS technology TFT   display

Display   Resolution

320×240

Image Model

IR   image

IR/Visible/Picture-in-picture

Color Palettes

6:White Hot, Iron Red, Hot   Iron, Arctic, Rainbow 1, Rainbow 2

Temperature Measurement

Temperature   Range

-20°C-150°C,   100°C-400°CAuto switching

Accuracy

±2 or ±2%, whichever is greater
    ( target temp ≥0, ambient temp is 15 ~ 30 )

Measurement   Spot

Center   spot

Measurement   Area

3(incl. max & min temp)

Auto Hot &   Cold Spot Tracking

Yes

Alarm

Full   Screen Max & Min Spot Alarm

Image Storage

Storage Media

TF   cardStandard 16G, up to 32G)

IR Image   Format

Full   Radiometric (JPG)   (120 x 90)

Visible Image

N/A

Yes,   320 x 240

Connections & Communications

USB

TYPE-CTF Card slot

Laser

Yes

Tripod   interface

Yes

Mobile APP

N/A

Yes

PC IR Analysis   Software

Yes

Power System

Battery Tpye

Rechargeable   Li ion battery

Battery   Operating Time

8 hours

5 hours

Charging Time

Internal   charge≤2.5 hours

Environmental Parameters

Operating   Temperature

-10~50

Storage   Temperature

-40~70

Encapsulation

IP542-meter drop test

Certification

CE/ROHS/FCC

Weight

about   350g

Size

194mm*61.5mm*76mm

Standard   Accessories

 Charger Adapter, TYPE-C USB cable, Wrist   Strap, Quick start Guide, Data Download Card, 16G TF Card

*Technical parameters are subject to change without notice.

Downloads
T120 Thermal Camera Datasheet
