GigE Camera | HC-CA017-10GC 1.7 MP 1.1" Color CMOS GigE Area Scan Camera

Home / all / Machine Vision Cameras / CA Series Area Scan Cameras /

GigE Camera | HC-CA017-10GC 1.7 MP 1.1" Color CMOS GigE Area Scan Camera

GigE Camera | HC-CA017-10GC 1.7 MP 1.1" Color CMOS GigE Area Scan Camera

GigE Camera | HC-CA017-10GC 1.7 MP 1.1
GigE Camera | HC-CA017-10GC 1.7 MP 1.1GigE Camera | HC-CA017-10GC 1.7 MP 1.1GigE Camera | HC-CA017-10GC 1.7 MP 1.1GigE Camera | HC-CA017-10GC 1.7 MP 1.1
CategoriesCA Series Area Scan Cameras
BrandMSTAR Machine Vision System
ModelHC-CA017-10GC
Sensor typeCMOS, global shutter
SensorIMX432
Pixel size9 μm × 9 μm
Sensor size1.1
Resolution1608 × 1104
Max. Frame Rate68.5 fps
Mono/ColorColor
Data InterfaceGigE
Lens mountC-Mount
Dimension29 mm × 44 mm × 59 mm
CompatibilityGigE Vision V2.0, GenlCam
Terms of PaymentT/T, Paypal
Download DOC
Update Time2022/5/25
Detail Information

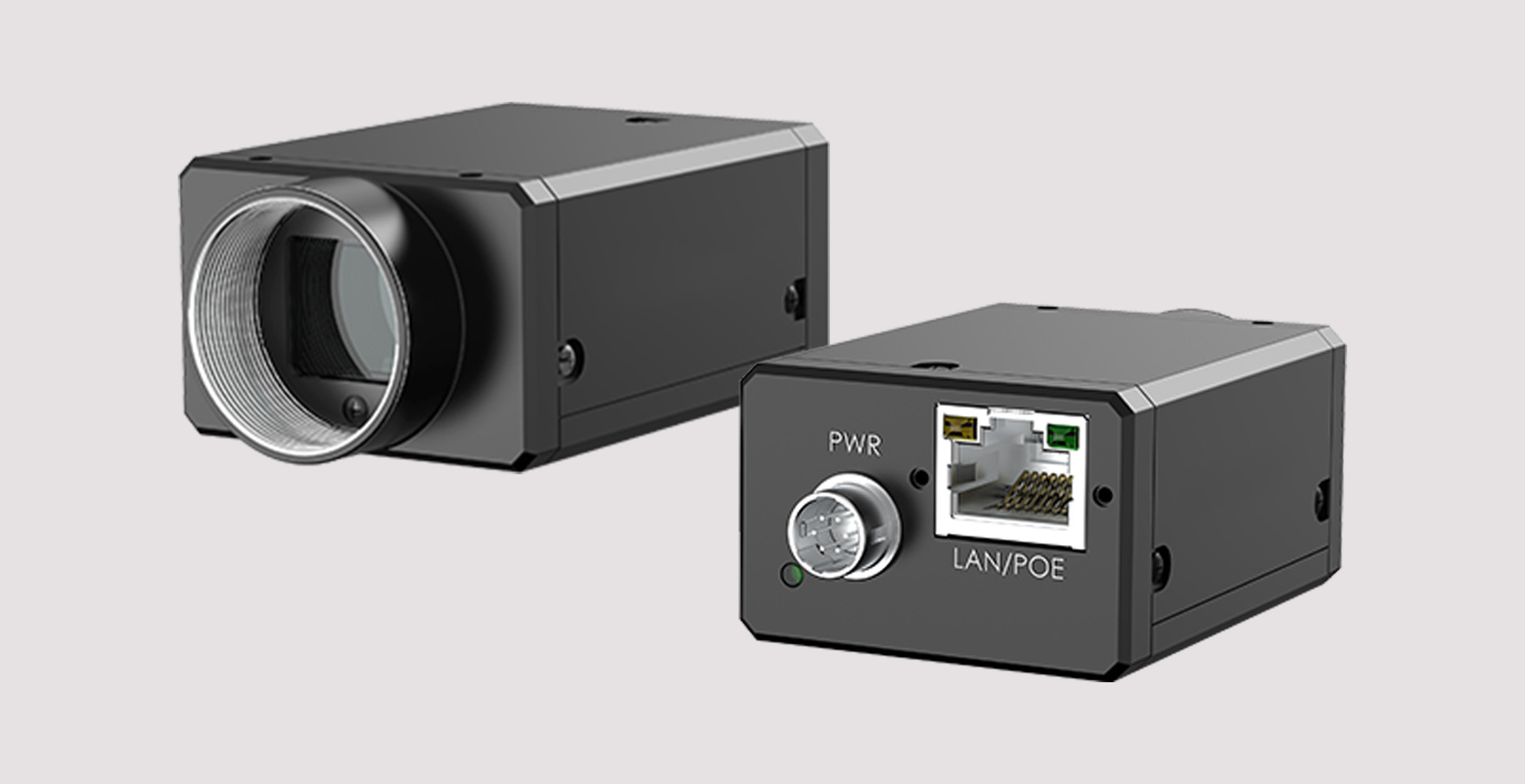

GigE Camera | HC-CA017-10GC 1.7 MP 1.1" Mono CMOS GigE Area Scan Camera
HC-CA017-10GM/GC camera adopts Sony® IMX432 sensor to provide high-quality image. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 68.5 fps in full resolution.
HC-CA017-10GC
Key Feature
//Adopts GigE interface and max. transmission distance of 100 meters without relay

//Supports auto and manual adjustment for exposure control, LUT, Gamma correction, and etc.

//Supports hardware triggering and software triggering

//Up to 128 MB local memory for burst transmission and retransmission

//Compatible with GigE Vision 2.0 Protocol, GenlCam standard, and the third-party software based on these protocol and standard

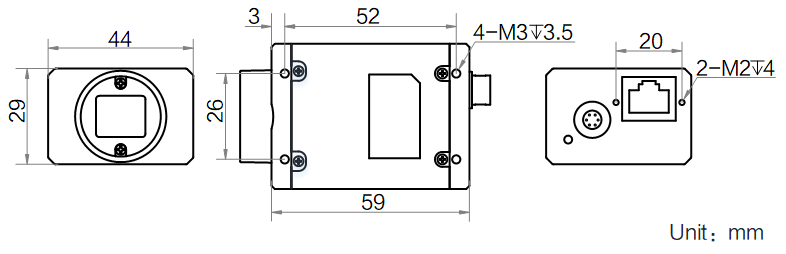

Dimension
Specification
Model
Model
HC-CA017-10GC
Type
1.7 MP 1.1" CMOS GigE Area Scan Camera
Camera
Sensor type
CMOS, global shutter
Sensor
IMX432
Pixel size
9 µm × 9 µm
Sensor size
1.1"
Resolution
1608 × 1104
Max. Frame Rate
68.5 fps
Dynamic range
72.44 dB
SNR
40 dB
Gain
0 dB to 24 dB
Exposure time
UltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec
Shutter mode
Off/ Once/ Continuous exposure mode
Mono/Color
Color
Pixel format
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image
Supports horizontal and vertical reverse image output
Image buffer
128 MB
Electrical features
Data Interface
GigE
Digital I/O
6-pin Hirose connector provides power supply and I/O, including opto-isolated Input x1 (Line 0), opto-isolated Output x 1 (Line 1), bi-directional non-isolated I/O x 1 (Line 2)
Power
12 VDC, supports PoE
Power consumption
Typ. 4.8 W@12 VDC
Mechanical
Lens mount
C-Mount
Dimension
29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight
Approx. 100 g (0.22 lb.)
Ingress protection
IP30 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 95% RH, non-condensing
General
Client software
MVS or third-party software meeting with GigE Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux or 64-bit MacOS
Compatibility
GigE Vision V2.0, GenlCam
Download
HC-CA017-10GMGC GigE Area Scan Camera_datasheet
UD24711B_GigE Area Scan Camera User Manual

HC-CA017-10GMGC Drawing
