IRtech-RS3 Series Thermal Scope
| Categories | Thermal Scope |
|---|---|
| Brand | MSTAR Machine Vision System |
| Model | RS3 |
| Detector Type | VOx |
| Resolution | 384×288 |
| Pixel pitch | 12μm |
| NETD | ≤40mk@25℃ |
| Frame rate | 50HZ |
| Focal length | 25mm/35mm/50mm |
| IP ratings | IP66 |
| Wifi | Yes |
| Download DOC |  |
| Update Time | Apr 20,2024 |
Detail Information

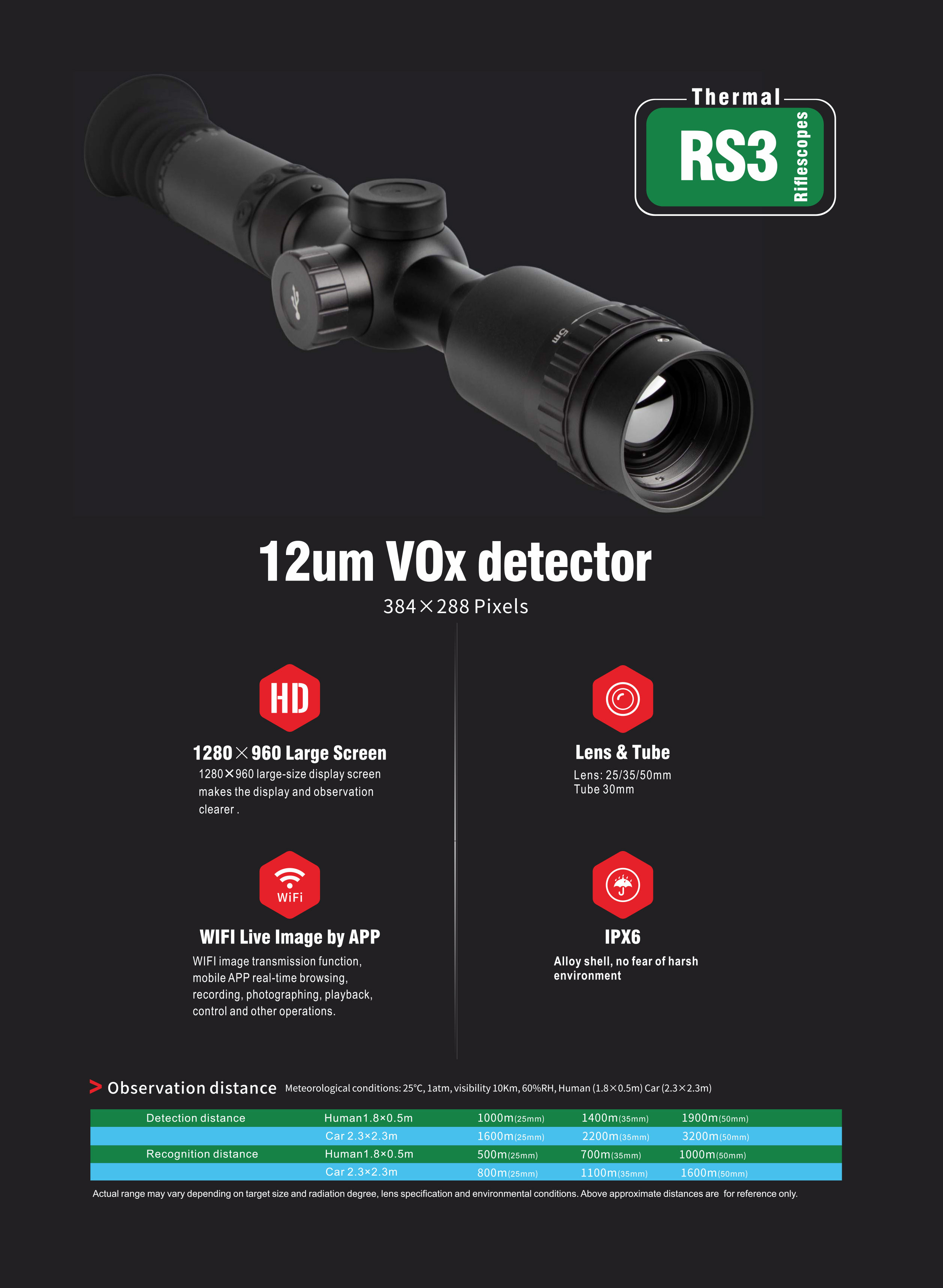

RS3 Series Thermal Scope
Specification
|
Item |
25-384 |
35-384 |
50-384 |
|
|
Detector |
Type |
VOx |
||
|
Pixel |
384×288 |
384×288 |
384×288 |
|
|
Pixel pitch |
12μm |
|||
|
NETD |
≤40mk@25℃ |
|||
|
Image |
Focal length |
25mm |
35mm |
50mm |
|
FOV |
10.6°*7.9° |
7.5°*5.7° |
5.3°*4.0° |
|
|
Frame rate |
50HZ |
|||
|
Focus |
Manual |
|||
|
Display |
Monitor |
Lcos（1280*960） |
||
|
Eyeshield rubber ring |
Yes |
|||
|
Operation |
Brightness/gain |
Automatic / Manual |
||
|
Digital zoom |
X2,X3,X4 |
|||
|
WIFI |
Yes |
|||
|
Storage |
Built in |
32G |
||
|
Type |
Photography and video recording |
|||
|
Power |
Battery |
Rechargeable |
||
|
Working |
＞5 hours |
|||
|
Physical |
IP ratings |
IP66 |
||
|
Dimension |
320*75*65mm |
|||
|
Weight |
900g |
|||
