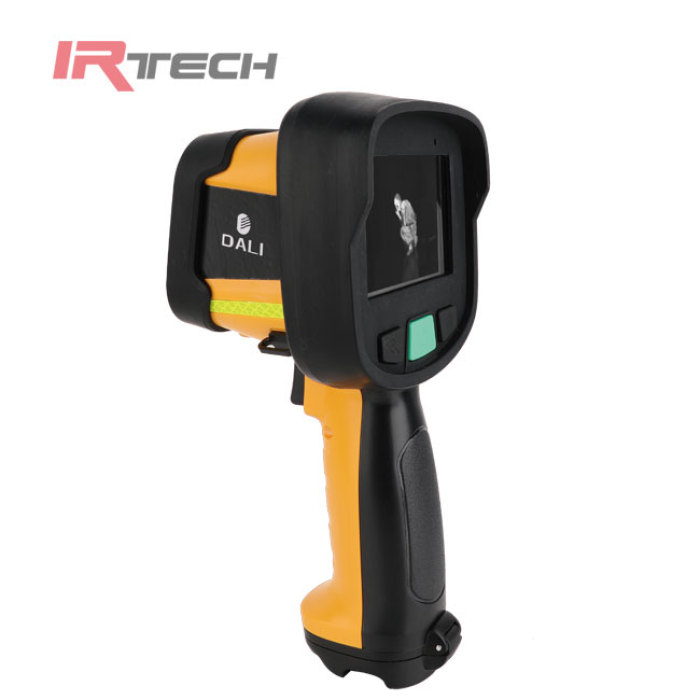

Handheld Thermal Camera | F5 Fire Fighting Thermal Imager

Home / all / Thermal Camera&System / Handheld Thermal Camera /

Handheld Thermal Camera | F5 Fire Fighting Thermal Imager

Handheld Thermal Camera | F5 Fire Fighting Thermal Imager

Handheld Thermal Camera | F5 Fire Fighting Thermal Imager
Handheld Thermal Camera | F5 Fire Fighting Thermal ImagerHandheld Thermal Camera | F5 Fire Fighting Thermal ImagerHandheld Thermal Camera | F5 Fire Fighting Thermal ImagerHandheld Thermal Camera | F5 Fire Fighting Thermal ImagerHandheld Thermal Camera | F5 Fire Fighting Thermal Imager
CategoriesHandheld Thermal Camera
BrandMSTAR Machine Vision System
ModelF5
Detector TypeUncooled focal plane micro-heat type
Resolution384*288
Pixel Size8um
Spectral Response8~14um
NETD≤60mK
Frame Rate50/60HZ
Angle of View Field49.2°*36.3°
Focusing Range0.5m -∞
Display4.3''; TFT color LCD display
Protection LevelIP67
Update TimeNovember 26,2022
Detail Information
Handheld Thermal Camera | F5 Fire Fighting Thermal Imager

The F5 is an advanced, feature-rich thermal imaging camera. With fully sealed connectors and a secured battery, the F5 is designed to be fully compliant for Thermal Imagers covering usability, image quality, and durability for firefighting.
Parameters

Item

Technical    Specifications

Optical Data Detector (Sensor)

Type

Uncooled focal plane micro-heat type

Resolution Ratio

384*288

Pixel Size

8um

Spectral Response

8~14um

Thermal Sensitivity (NETD)

≤60mK

Frame Frequency (Refresh Rate)

50/60HZ

Optical Data Lens

Angle of View Field

49.2°*36.3°

Focusing Range

0.5m    -∞

Optical Data Display

Display

4.3”    TFT color LCD display, resolution 800*480

Color Mark Mode

Black    hot, white hot, fire protection, iron red, firefighting, search & rescue

Image Adjustment

Automatic

Image Performance

Spatial Resolution

2.58mrad

Image Processing

The    dual-band image fusion technology

Digital Zooming

2x,    4x

Image Storage

Memory

Built-in    32G memory

Video Shooting

Yes,    the format of “AVI” is available

Image Storage

Yes,    the format of “JPEG” is available

Measurement

Temperature Measurement Range

From    -20°C to +1200°C, automatic shift

Temperature Measurement Accuracy

±10°C    or ±10% of the measured value, which is greater

Temperature Measurement Modes

The    central point, the highest temperature point, the lowest temperature point

Temperature Measurement Correction

Automatic/Manual    Zero Setting

Power Supply System
(Electrical Data)

Battery Type

Rechargeable    lithium battery

Working Time of Battery

More    than 4 hours

Battery Charging Time

The    battery can be fully charged within 3 hours

Power Supply Management

Automatic    power-off/automatic sleep

Physical Properties
(Mechanical Data)

Overall Dimension

W145*D125*H270mm

Total Weight

≤1.3Kg    (battery included)

Logo on Housing

Fluorescent    reflective strip

Other Configuration

Compass

Yes

Laser Ranging

Yes

WiFi

The    built-in WiFi module can transmit wireless video

Data Interface

USB    type C for image/video transmission

Environmental Parameters
(Environmental Data)

Operating Temperature (Thermal Conditions)

-10°C    to +50°C. The device can keep running for 30 minutes at 80 °C. The device can    keep running for 10 minutes at +120°C or for 5 minutes at +260°C.

Storage Temperature

From    -30°C to +60°C

Humidity & Temperature

The    device can keep running for 2 hours at 40°C and 85% RH

Level of Protection

IP67

Vibration

2.5g,    IEC60068-2-6

Impact

25g,    IEC60068-2-29

Falling

2m

Safety​​​​​​​ Requirements
(Compliance Data)

Performance

This    device conforms to GA/T 635—2006 Thermal Infrared Imager for Fire Protection

Safety

GB4943.1-2011

EMC

This    device is CE certified

RoHS

Compliance

Laser

IEC60825-1-2014
