Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone

Home / All / Thermal Camera&System / Handheld Thermal Camera /

Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone

Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone

Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone
Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for SmartphonePortable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for SmartphonePortable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for SmartphonePortable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for SmartphonePortable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone
CategoriesHandheld Thermal Camera
BrandMSTAR Machine Vision System
ModelMobIR Air CB360
IR Resolution120×90 @17μm WLP
Spectral Range8~14μm
Focal Length2.3mm F1.1
Field of View (FOV)50°±1°
Image Display/CaptureJPEG
Power5V/≤150mW
Update TimeMar 29,2024
Detail Information
Handheld Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone

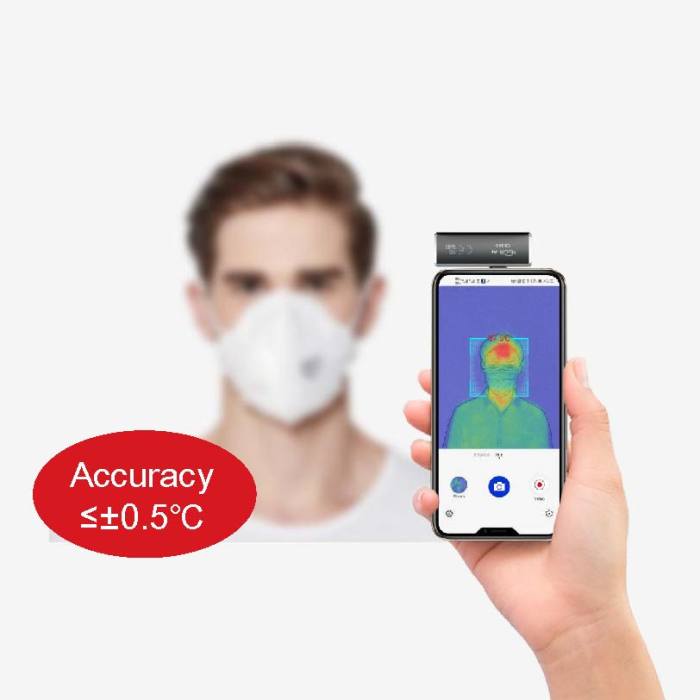

Guide MobIR Air CB360 Fever Scanner is a simple, efficient and affordable thermal imaging camera to turn your smartphone into a temperature detector instantly. MobIR Air CB360 can detect the human temperature from 1.2 meters away and automatically sound an alarm while identifying the elevated temperature, which helps deliver efficient and accurate temperature screening and make us safer at public area.

üSafe: temperature screening from 1.2 meters away, ensure social distance and avoid cross-infection

üEfficient: scan and show the temperature instantly

üSimpleplug and play, easy to use

üAutomatic: Sound an alarm and capture an image while identifying the elevated temperature

üImaging enhancement: GUIDE’s Unique MIF (Multi-spectral Imaging Fusion) technology, enhance the thermal image by the camera of smartphone

üImage data can be reported and shared by social media

GUIDE CB360 Fever Scanner for Smartphone-1.jpg

GUIDE CB360 Fever Scanner for Smartphone-2.jpg

GUIDE CB360 Fever Scanner for Smartphone-3.jpg

GUIDE CB360 Fever Scanner for Smartphone-4.jpg

GUIDE CB360 Fever Scanner for Smartphone-5.jpg

GUIDE CB360 Fever Scanner for Smartphone-6.jpg

GUIDE CB360 Fever Scanner for Smartphone-7.jpg

GUIDE CB360 Fever Scanner for Smartphone-8.jpg


Specifications

Category

Item

Specifications

IR   Detector

IR   Resolution

120×90   @17μm   WLP

Spectral   Range

814μm

Lens

Focal   Length

2.3mm   F1.1

Field   of View (FOV)

50°±1°

Focus

Focus-free

Imaging

Frame   Rate

25Hz

Functions

Temperature   Measurement Accuracy

Temperature   measuring from 0.5 ~ 1.2 meters;, accuracy≤   ± 0.5 ,   target temperature range 28   40

Multi-spectral   Imaging Fusion

Adopt   GUIDE's unique MIF technology, add visible details to the thermal image by   the camera of smartphone

Image   Display/Capture

Saved   as  JPEG images

Interface

Communication   Power Supply Interface

USB   Type-C (Android);  Lightning  (IOS)

Powwer   Supply

Input   Voltage

5VPowered   by smartphone

Typical   Power Consumption

≤150mW

Environmental   Adaptability

Operating   Temperature

0-40

Storage   Temperature

-10-55

Drop   Test

1-meter   drop test

Others

Weight

Net   weight -20gGross   weight- 80g

Dimensions

51mm×18mm×15.6mm   (L x W x H) (excl.USB interface)

Package   Dimensions

102mm×72mm×38mm  (L x W x H)

Certifications

RoHSCEFCC

Standard   Accessories

Fever   Scanner, Quick Start Guide, Warranty Card
