USB3 Vision Camera | HC-CE200-10UC 20 MP 1" Color CMOS USB3.0 Area Scan Camera

Home / all / Machine Vision Cameras / CE Series Area Scan cameras /

USB3 Vision Camera | HC-CE200-10UC 20 MP 1" Color CMOS USB3.0 Area Scan Camera

USB3 Vision Camera | HC-CE200-10UC 20 MP 1" Color CMOS USB3.0 Area Scan Camera

USB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan Camera
USB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan CameraUSB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan CameraUSB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan CameraUSB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan Camera
CategoriesCE Series Area Scan cameras
BrandMSTAR Machine Vision System
ModelHC-CE200-10UC
Sensor typeCMOS, rolling shutter
SensorIMX183
Pixel size2.4 µm × 2.4 µm
Sensor size1
Resolution5472 × 3648
Max. Frame Rate19.2 fps
Mono/ColorColor
Data InterfaceUSB3.0
Lens mountC-Mount

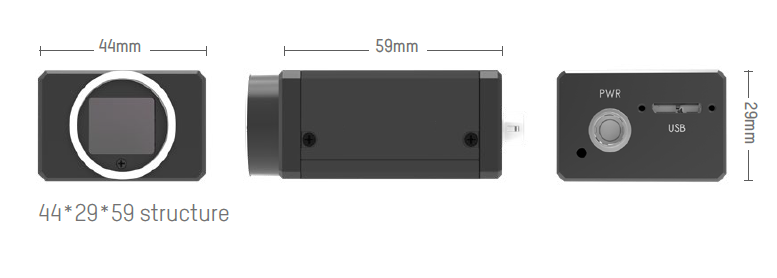

Dimension44 mm × 29 mm × 59 mm
CompatibilityUSB3 Vision, GenICam
Terms of PaymentT/T, Paypal
Download DOCpdf icon
Update TimeNovember 26,2022
Detail Information
USB3 Vision Camera | HC-CE200-10UC  20 MP 1" Color CMOS USB3.0 Area Scan Camera
HC-CE200-10UM/UC camera adopts Sony® IMX183 sensor to provide high-quality image. It uses USB3.0 interface to transmit non-compressed images in real time, and its max. frame rate can reach 19.2 fps in full resolution.
Key Feature
 Supports auto and manual adjustment for gain,  exposure control, LUT, Gamma correction, etc.
 Supports hardware triggering, software triggering and free run mode.
 Adopts M2 screw holes for securing cable that connects USB3.0 interface.
 Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

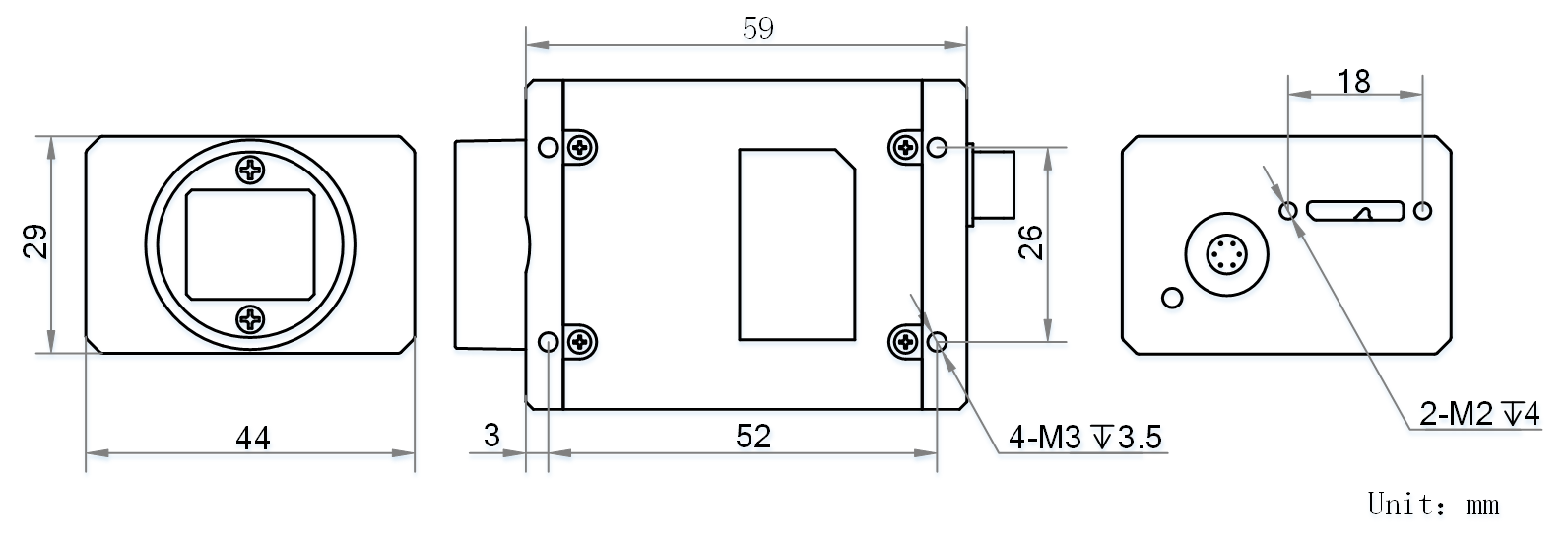

Dimension
Specification

Model

Model

HC-CE200-10UC

Type

20 MP, 1" CMOS, USB3.0 Camera

Camera

Sensor type

CMOS, rolling shutter

Sensor

IMX183

Pixel size

2.4 µm × 2.4 µm

Sensor size

1"

Resolution

5472 × 3648

Max. Frame Rate

19.2 fps

Dynamic range

65.5 dB

SNR

41.5 dB

Gain

0 dB to 20 dB

Exposure time

44 μs to 0.7 s

Exposure mode

Off/Once/Continuous exposure mode

Mono/Color

Color

Pixel format

Mono 8/10/12, Bayer GB 8/10/10p/12/12p,
YUV422_YUYV_Packed, YUV 422 Packed,
RGB8, BGR8

Binning

Supports 1 × 1, 2 × 2, 4 × 4

Decimation

Supports 1 × 1, 2 × 2, 4 × 4

Reverse image

Supports horizontal and vertical reverse image output

Image buffer

128 MB

Electrical features

Data Interface

USB3.0

Digital I/O

6-pin Hirose connector provides power and I/O, including opto-isolated input x 1 (Line0), opto-isolated output x 1(Line1), bi-directional non-isolated I/O x 1 (Line2)

Power supply

12 VDC, supports USB3.0 power supply

Power consumption

Typ. 2.83 W@5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount

C-Mount

Dimension

44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")

Weight

Approx. 100 g (0.2 lb.)

Ingress protection

IP30 (under proper lens installation and wiring)

Temperature

Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity

20% to 80% RH, without condensation

General

Client software

MVS or third-party software meeting with USB3.0 Vision Protocol

Operating system

32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS

Compatibility

USB3 Vision, GenlCam

Certification

CE, FCC, RoHS, KC

Download
HC-CE200-10UMUC USB3.0 Area Scan Camera
UD22554B_USB3.0 Area Scan Camera User Manual

Drawing_44 mm × 29 mm × 59 mm

Accessories
ADS-12FG-12N 12012EPCN
Power Adapter
MV-ACC-01-2101-3m
6-pin P7 Power&I/O Cable
MV-ACC-01-1201-1m
USB3.0 Data Cable
Applications
Electronics
Home Appliances
Electrical
